Track Template Messages using Webhooks

Use case: All template messages sent using the WATI's Send Template Message API Endpoint must be tracked when they were sent, delivered, read, and received a reply.

How To:
With the sendTemplateMessage V2 (Beta) endpoint, whenever a message is triggered, a localMessageId is returned as part of the API response.

Sample cURL request:

curl --location 'https://live-server-279.wati.io/api/v2/sendTemplateMessage?whatsappNumber=<whatsappNumber>' \
--header 'Authorization: Bearer <Token>' \
--header 'Content-Type: application/json-patch+json' \
--data '{
  "template_name": "update_for_you",
  "broadcast_name": "JPTestBroadcast",
  "parameters": []
}'

Sample Response:

{
    "result": true,
    "error": null,
    "templateName": "update_for_you",
    "receivers": [
        {
            "localMessageId": "d38f0c3a-e833-4725-a894-53a2b1dc1af6",
            "waId": "<whatsappNumber>",
            "isValidWhatsAppNumber": true,
            "errors": []
        }
    ],
    "parameters": []
}

The localMessageId can be used to track the message life cycle in the following Webhook events.

1542

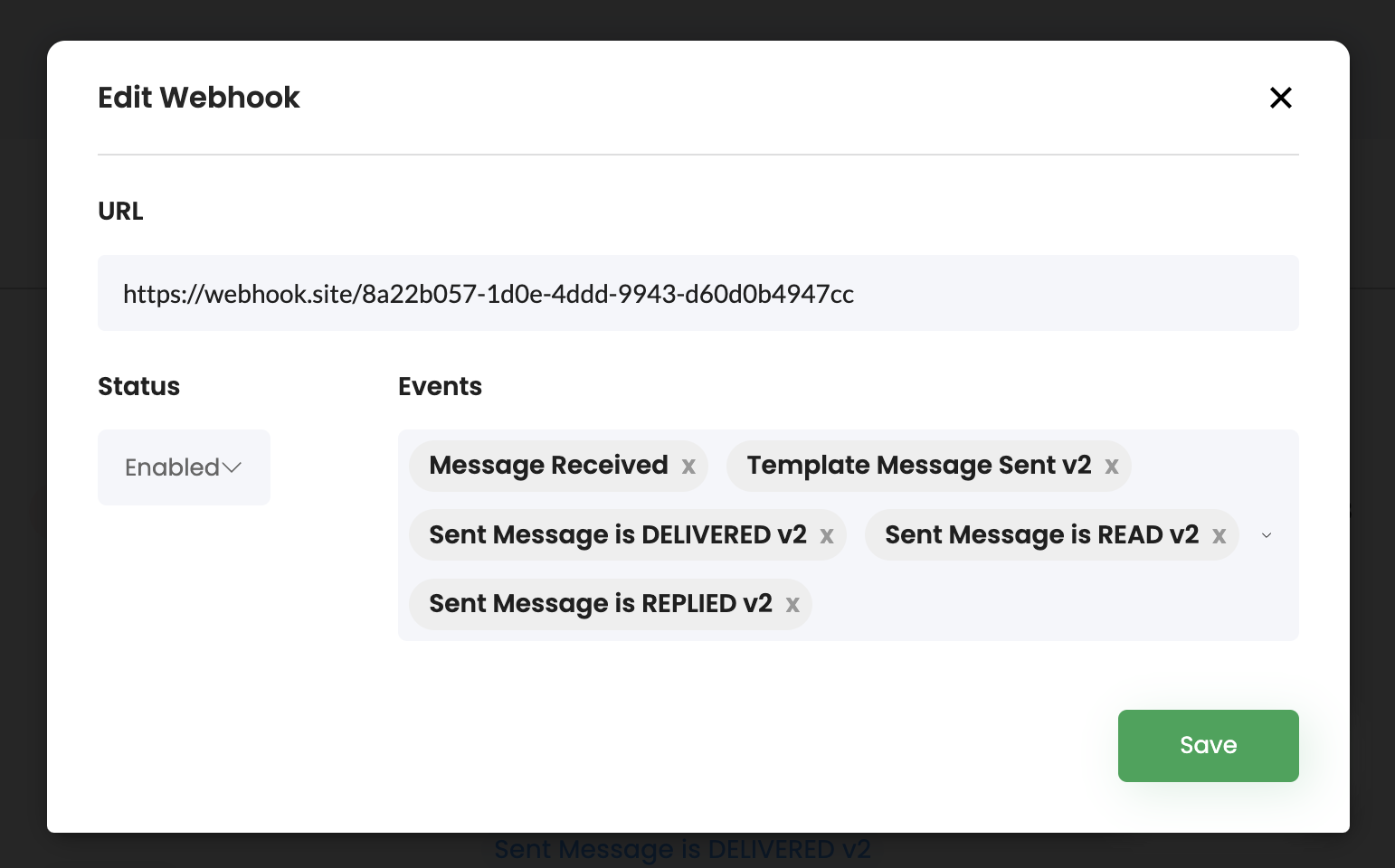

Go to WATI Dashboard -> Webhooks -> Add Webhook -> Paste your webhook URL here. Set Status as Enabled, and choose the following Events:

1) Template Message Sent v2

This webhook is triggered when the Template message is sent and will also contain the localMessageId
Sample payload for this webhook:

{
  "eventType": "templateMessageSent_v2",
  "localMessageId": "d38f0c3a-e833-4725-a894-53a2b1dc1af6",
  "id": "640c8fd48b67615f886237b8",
  "whatsappMessageId": "gBEGkXmJQZVJAgkRHwjjZsITS6M",
  "templateId": "63766ae83b2e064905789c63",
  "templateName": "update_for_you",
  "created": "2023-03-11T14:27:32.9655388Z",
  "conversationId": "639c34fbd205f79bdec81bea",
  "ticketId": "640c8e6d8b67615f886237a7",
  "text": "Hi! We have an update for you.",
  "operatorEmail": "[email protected]",
  "waId": "<whatsappNumber>",
  "type": "template",
  "statusString": "SENT",
  "sourceType": "API"
}

2) Sent Message is DELIVERED v2

This webhook is triggered when the message you sent is delivered to the user.
Sample payload for this webhook:

{
  "eventType": "sentMessageDELIVERED_v2",
  "statusString": "Delivered",
  "localMessageId": "d38f0c3a-e833-4725-a894-53a2b1dc1af6",
  "id": "640c8fd48b67615f886237b8",
  "whatsappMessageId": "gBEGkXmJQZVJAgkRHwjjZsITS6M",
  "conversationId": "639c34fbd205f79bdec81bea",
  "ticketId": "640c8e6d8b67615f886237a7",
  "text": null,
  "type": "template",
  "timestamp": "1678544854",
  "assigneeId": null,
  "operatorEmail": "[email protected]"
}

3) Sent Message is READ v2

This webhook is triggered when the message you sent is read by the user.
Sample payload for this webhook:

{
  "eventType": "sentMessageREAD_v2",
  "statusString": "Read",
  "localMessageId": "d38f0c3a-e833-4725-a894-53a2b1dc1af6",
  "id": "640c8fd48b67615f886237b8",
  "whatsappMessageId": "gBEGkXmJQZVJAgkRHwjjZsITS6M",
  "conversationId": "639c34fbd205f79bdec81bea",
  "ticketId": "640c8e6d8b67615f886237a7",
  "text": null,
  "type": "template",
  "timestamp": "1678545043",
  "assigneeId": null,
  "operatorEmail": "[email protected]"
}

4) Sent Message is REPLIED v2

This webhook is triggered when the user replies back to the message you sent
Sample payload for this webhook:

{
  "eventType": "sentMessageREPLIED_v2",
  "statusString": "Replied",
  "localMessageId": "d38f0c3a-e833-4725-a894-53a2b1dc1af6",
  "id": "640c8fd48b67615f886237b8",
  "whatsappMessageId": "gBEGkXmJQZVJAgkRHwjjZsITS6M",
  "conversationId": "639c34fbd205f79bdec81bea",
  "ticketId": "640c8e6d8b67615f886237a7",
  "text": null,
  "type": "template",
  "timestamp": "1678545074",
  "assigneeId": null,
  "operatorEmail": "[email protected]"
}
